Buy laboratory plasma systems
Offers directly from the manufacturer
Our laboratory and small-batch plasma systems for surface pretreatment are designed for use in laboratory environments or small-scale production and are manufactured in series. They offer the ideal sizes, throughput rates, and capacities (chamber volumes ranging from 2.4 liters to 40 liters). The benchtop systems are suitable for the activation, finishing, cleaning, or coating of surfaces on a wide variety of materials and are particularly practical for use in medical technology, research and development, semiconductor technology, plastics processing, or electronics.
PlasmaFlecto® Series of systems
Modern benchtop devices with microcontrollers and industrial PCs. Multiple processes can be saved, and logging is available. Support via TeamViewer.

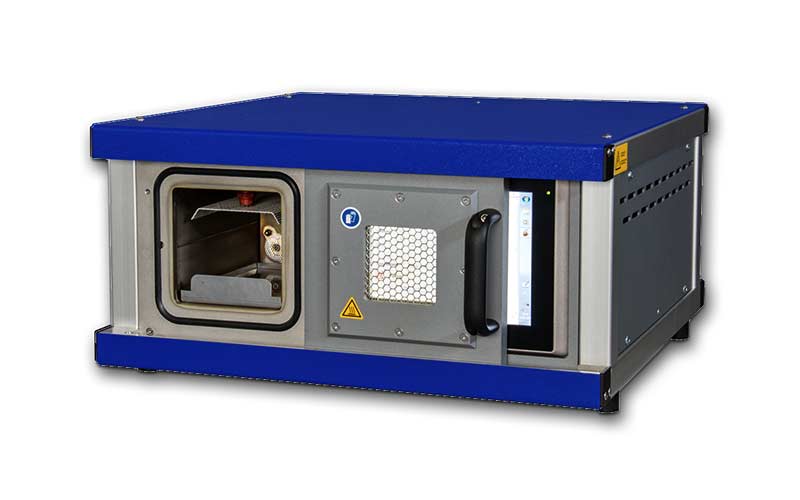

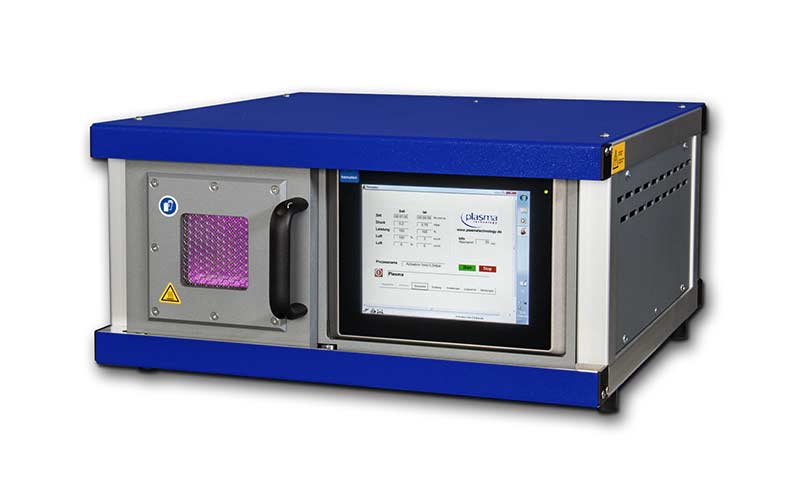

MiniFlecto®
Our “MiniFlecto®” series model is a small, compact laboratory system—or benchtop unit—designed for the efficient treatment of material surfaces using low-pressure plasma technology in a vacuum chamber.
With a chamber volume of 2.4 liters, it is one of our smallest laboratory plasma systems and operates efficiently with an 80-watt generator.
Typ: Laboratory plasma system
Volume: 2,4 L.
Dimensions: 505 x 255 x 550 mm
Chamber: 110 x 73 x 200 mm
Generator: 80 W
Control: Mikrocontroller with Industrie-PC
Parameter: Time, Pressure, Flow Rate, Process Gas

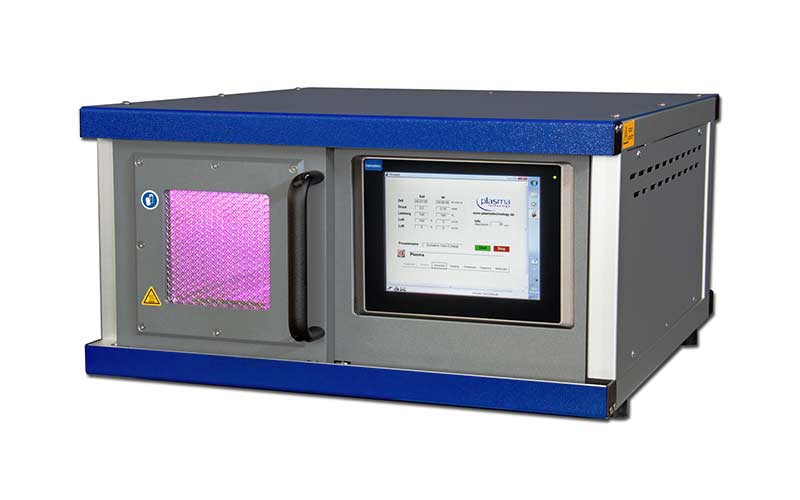

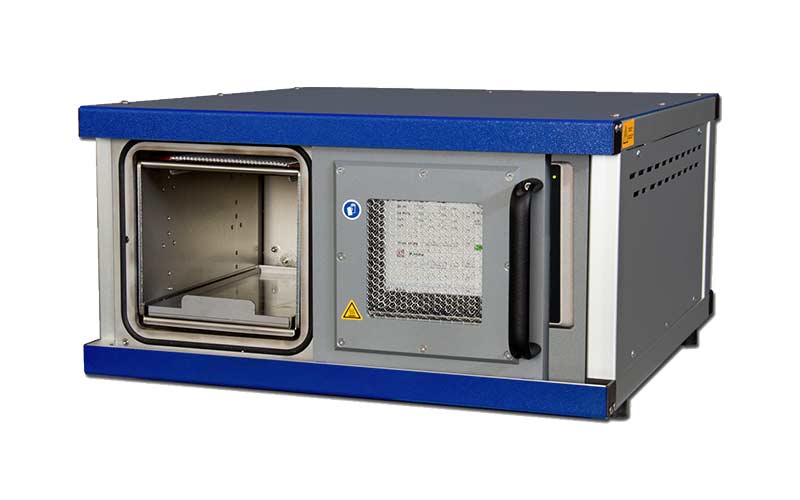

PlasmaFlecto®10
The “PlasmaFlecto10®” is a laboratory plasma system with a chamber volume of 11.4 liters. This compact benchtop unit is easy to operate, and processes can be logged and adjusted via the display.
This compact laboratory system uses environmentally friendly low-pressure plasma technology and a 300-watt generator.
Typ: Laboratory plasma system
Volume: 11,4 L.
Dimensions: 575 x 305 x 645 mm
Chamber: 175 x 160 x 320 mm
Generator: 300 W
Control: Mikrocontroller with Industrie-PC
Parameter: Time, Pressure, Flow Rate, Process Gas

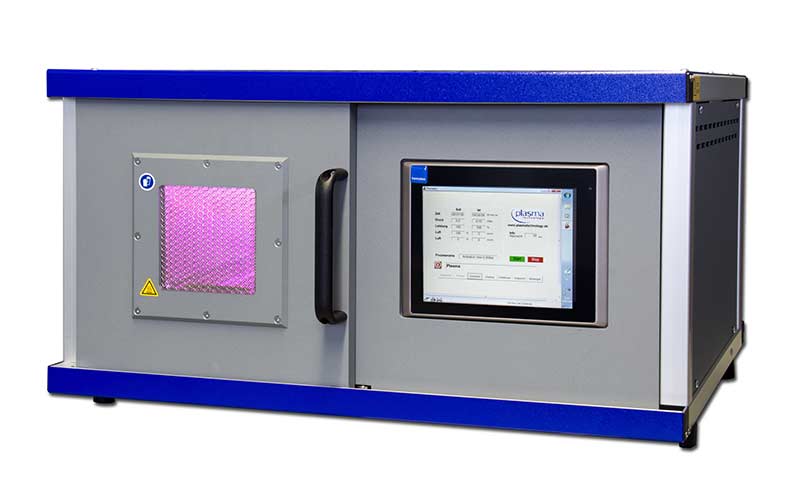

PlasmaFlecto®30
With a chamber volume of 32 liters and external dimensions of 740 x 415 x 665 mm (WxHxD), the “PlasmaFlecto30®” is an ideal laboratory plasma system for the surface treatment of small components and materials.
This small and compact low-pressure plasma system runs on a 600-watt generator and can be easily operated and logged via the display.
Typ: Laboratory plasma system
Volume: 32 L.
Dimensions: 740 x 415 x 665 mm
Chamber: 275 x 240 x 380 mm
Generator: 600 W
Control: Mikrocontroller with Industrie-PC
Parameter: Time, Pressure, Flow Rate, Process Gas

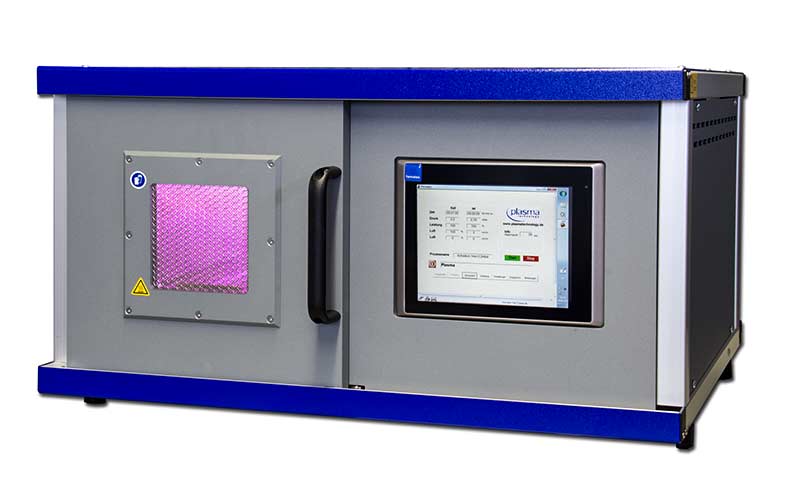

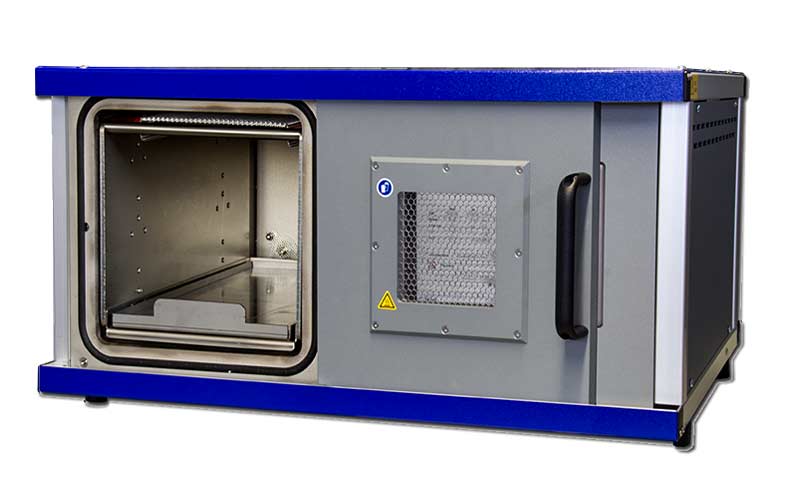

PlasmaFlecto®40
The “PlasmaFlecto40®” is our largest laboratory plasma system in this series. With a chamber volume of 40 liters and usable chamber dimensions of 290 x 240 x 480 mm (WxHxD), it is capable of performing a wide range of plasma surface treatments.
This modern laboratory system has external dimensions of 704 x 415 x 700 mm, operates with a 600-watt generator, and is therefore a versatile benchtop unit.
Typ: Laboratory plasma system
Volume: 40 L.
Dimensions: 740 x 415 x 700 mm
Chamber: 275 x 240 x 380 mm
Internal chamber dimensions: 275 x 240 x 320 mm
Generator: 600 W
Control: Microcontroller controlled by an industrial PC for visualization
Parameter: Time, Pressure, Flow Rate, Process Gas
SmartPlasma® Product line
Benchtop surface treatment units using low-pressure plasma technology, featuring a compact control panel and a text display. Capable of storing a single process.

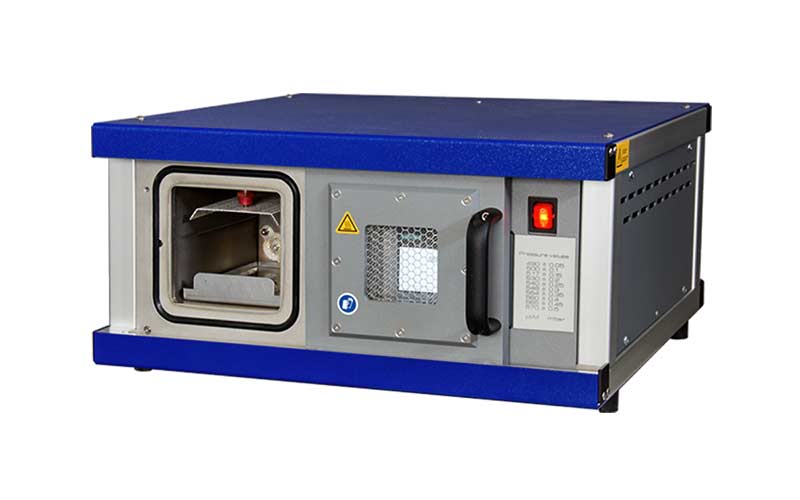

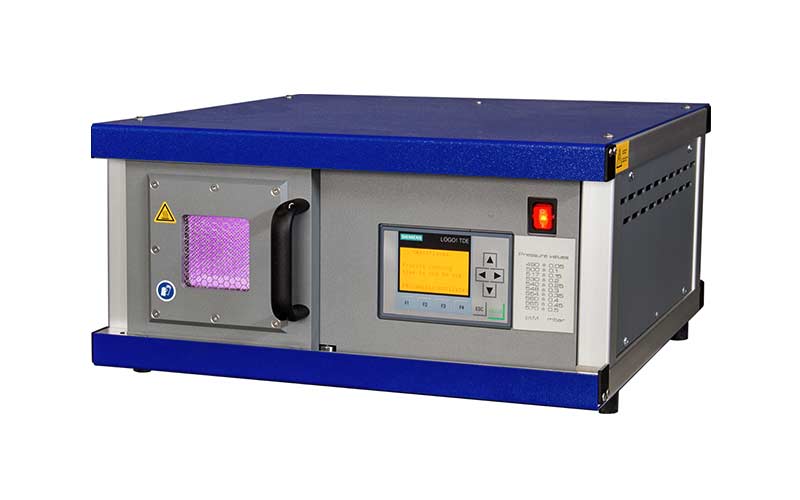

SmartPlasma 2
Our “SmartPlasma 2” series model is a laboratory plasma system designed for innovative surface treatment using low-pressure plasma technology. Measuring 505 x 255 x 550 mm (WxHxD), it is a compact yet powerful benchtop unit.
With a chamber volume of 2.4 liters, it is the smallest system in this product series and operates efficiently with an 80-watt generator.
Volume: 2,4 L.
Dimensions: 505 x 255 x 550 mm
Chamber: 110 x 73 x 200 mm
Generator: 80 W
Control: Siemens Kleinsteuerung
Pro Version: Mass-Flow-Controller
Parameter: Time, Pressure, Performance

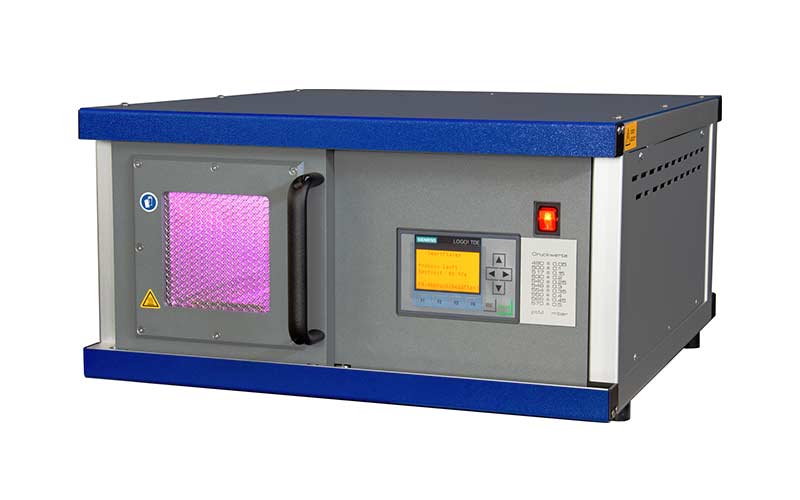

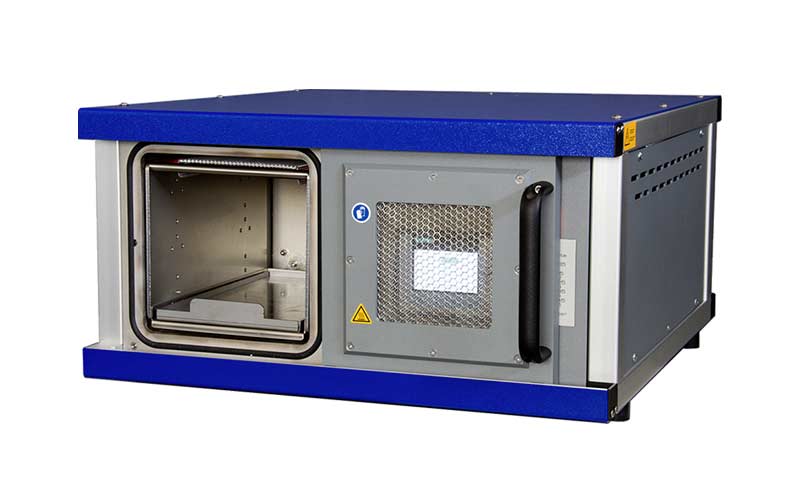

SmartPlasma 10
Our standard model, the “SmartPlasma 10,” has external dimensions of 575 x 305 x 645 mm (WxHxD) and a chamber volume of 11.5 liters. A 300-watt generator is permanently installed to ensure optimal plasma performance.
Like all laboratory systems in the SmartPlasma series, operation is modern and easy thanks to a Siemens compact controller (Pro with mass flow controller).
Volume: 11,5 L.
Dimensions: 575 x 305 x 645 mm
Chamber: 175 x 160 x 320 mm
Generator: 300 W
Control: Siemens Kleinsteuerung
Pro Version: Mass-Flow-Controller
Parameter: Time, Pressure, Performance

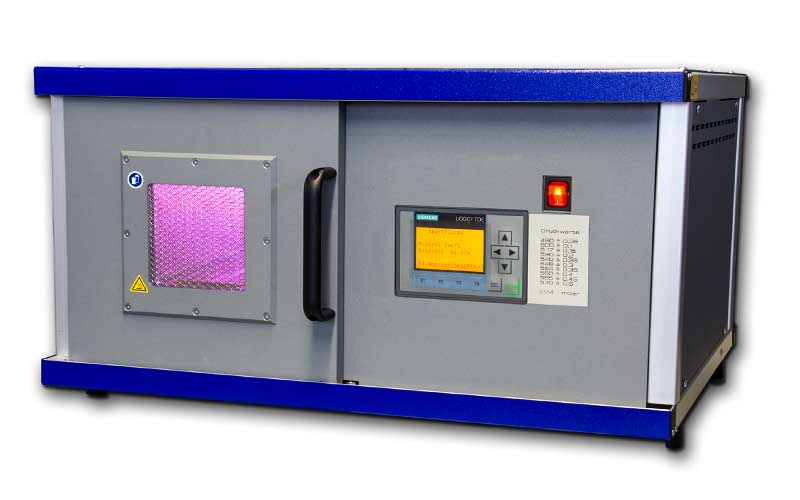

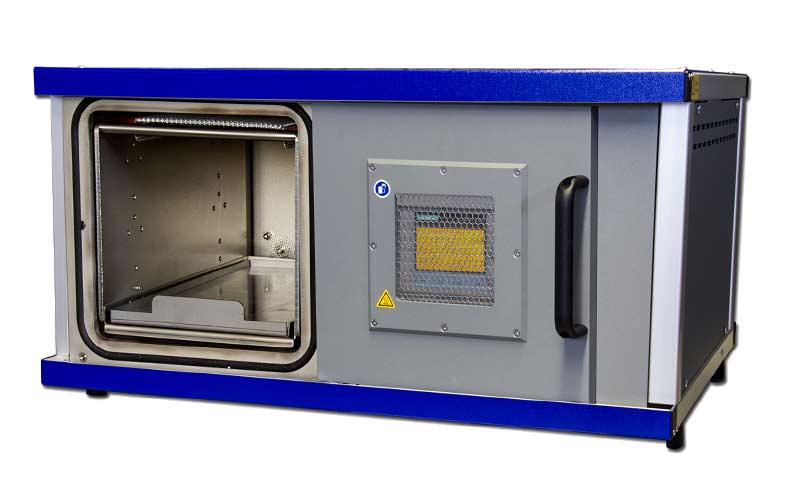

SmartPlasma 30
The SmartPlasma 30 has external dimensions (WxHxD) of 740 x 415 x 665 mm and a 32-liter chamber volume for activating, cleaning, coating, or finishing a wide variety of material surfaces.
A 600-watt generator and a Siemens Kleinsteuerung + Pro version with a mass flow controller make the system a modern benchtop unit.
Volume: 32 L.
Dimensions: 740 x 415 x 665 mm
Chamber: 275 x 240 x 380 mm
Generator: 600 W
Control: Siemens Kleinsteuerung
Pro Version: Mit Mass-Flow-Controller
Parameter: Time, Pressure, Performance

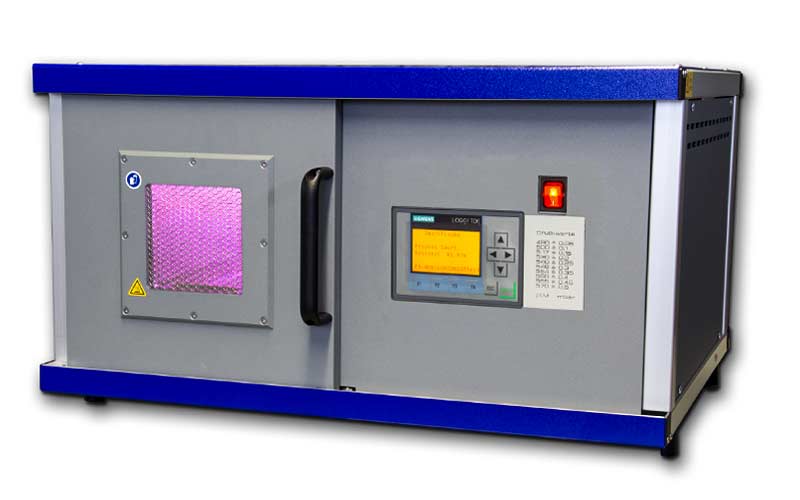

SmartPlasma 40
With external dimensions (WxHxD) of 740 x 415 x 700 mm and a 40-liter chamber volume for material surface treatment, the SmartPlasma 40 is the largest laboratory plasma system in our product line.
Equipped with the Siemens Kleinsteuerung + Pro version featuring a mass flow controller, this innovative benchtop unit is easy to operate and allows for precise process control.
Volume: 40 L.
Dimensions: 740 x 415 x 700 mm
Chamber: 275 x 240 x 480 mm
Generator: 600 W
Control: Siemens Control System (Pro Version + Mass-Flow-Controller)
Parameter: Zeit, Druck, Leistung
Rent first, then buy
We offer you a practical and cost-effective option to rent any of our laboratory plasma systems. This allows you to test each system for yourself first or bridge delivery times when you need a solution quickly. You can also purchase a rented plasma system at any time if you end up needing a long-term plasma treatment solution. We’ll provide you with expert advice and will be happy to prepare a customized quote for you.
Easy Purchase
From the manufacturer
Flexible leasing
With an option to buy
Complete systems
Including all components
Highest quality
Made in Germany
FAQ: Buying a Laboratory Plasma System
How much does a laboratory system cost?
Based on factors such as the choice of laboratory equipment, the desired quantity, optional insurance, delivery or pickup, and optional service support, we will provide you with a comprehensive purchase quote within 24 hours, including transparent (net) prices and our Terms and Conditions.
Which laboratory system is right for us?
If you're not sure which tabletop appliance is right for you, simply contact our team of experts. We'll provide expert advice on all your questions and explain the features and their applications in detail.
Ordering and Delivery?
Our plasma systems are manufactured ex works as standard and are available for pickup there (EXW). When placing a binding order, you can add secure shipping to your order. An invoice will be issued after delivery and is due within 14 days.
