Production plasma systems
Buy now from the manufacturer
Our production-grade plasma systems are state-of-the-art floor-standing units designed and engineered for continuous operation (24/7) and high-volume series production, with specifications tailored to their size, throughput, and capacity. Components are fed into the chamber via either a sliding or a swing door for easy loading and unloading. Chamber volumes range from 150 liters to 890 liters.
IndustrialLine Plasma Systems
Our IndustrialLine entry-level plasma production systems make it easy to handle 24/7 mass production of large volumes. They feature chamber volumes of 150, 340, or 890 liters and are easy to operate and monitor thanks to their modern control system and user interface.
PA 150 Logo
Our mass-produced PA 150 Logo plasma system is a standard production system with a chamber volume of 150 liters. Pressure, process time, and power can be adjusted, and the plasma process can be monitored.
Technical Details
Typ: Plasma production system
Size (WxHxD): 1500 x 2130 x 1500 mm
Chamber: 500 x 500 x 600 mm
Chambervolume: 150 Liter
Due to the electrode configuration and, if applicable, product carrier systems, the usable chamber dimensions are reduced.
Control: Siemens Microcontroller
Display: Touchscreen
Generator: 5 kW
Parameter: Time, Pressure, Power, Process Gas
Optional: Rotary Drum
PA 390 Logo
The PA 390 Logo series model is our mid-sized standard production system with a chamber volume of 390 liters. The plasma processes can be easily adjusted and monitored to ensure optimal quality.
Technical Details
Typ: Plasma production system
Size (WxHxD): 1300 x 2300 x 1400 mm
Chamber: 720 x 720 x 730 mm
Chamervolume: 390 Liter
Due to the electrode configuration and, if applicable, product carrier systems, the usable chamber dimensions are reduced.
Control: Siemens Microcontroller
Display: Touchsreen
Generator: 5 kW
Parameter: Time, Pressure, Power, Process Gas
Optional: Rotary Drum
PA 890 Logo
With a chamber volume of 890 liters, the PA 890 Logo is our largest plasma system for standard production in this series. It can therefore be used for pre-cleaning, activating, or texturing a wide variety of surfaces.
Technical Details
Typ: Plasma production system
Size (WxHxD): 1300 x 2350 x 1600 mm
Chamber: 788 x 1388 x 755 mm
Chamervolume: 890 Liter
Due to the electrode configuration and, if applicable, product carrier systems, the usable chamber dimensions are reduced..
Control: Siemens Microcontroller
Display: Touchscreen
Generator: 5 kW
Parameter: Time, Pressure, Power, Process Gas
ProfiLine Production systems
Programmable standard plasma systems for your 24/7 production, featuring modern PLC control and chamber volumes ranging from 150 to 390 liters. Our ProfiLine plasma production systems are also available in a double-door configuration, e.g., as an airlock or for integration into a cleanroom.

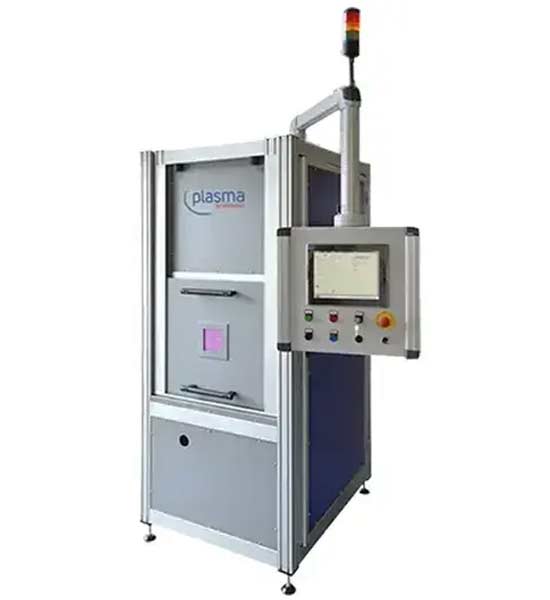

PlasmaActivate 150
The PlasmaActivate 150 is a standard production system with a chamber volume of 150 liters. Pressure, process time, and power can be easily adjusted, and plasma processes can be closely monitored.
Technical Details
Typ: Plasma-Produktionsanlage
Size (WxHxD): 963 x 2130 x 1140 mm
Chambervolume: 150 Liter
Chamber-Size: 500 x 500 x 600 mm
The usable chamber dimensions are reduced by the electrode assembly and, if applicable, product carrier systems.
Control: SPS-Steuerung (Vipa, Siemens)
Parameter: Time, Pressure, Power, Process Gas
Generator: 5 kW
Optional: Rotating drum and double door

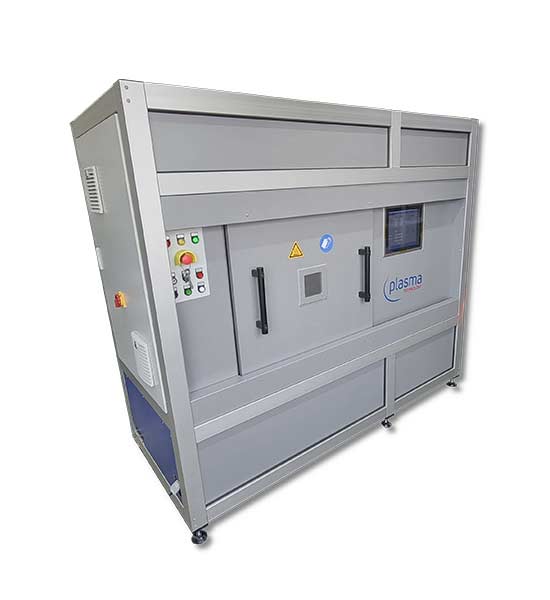

PlasmaActivate 390
The PlasmaActivate 390 is an innovative plasma system designed for standard production. It has a chamber volume of 390 liters, and pressure, process time, and power can be precisely adjusted, while plasma processes can also be closely monitored.
Technical Details
Typ: Plasma-Produktionsanlage
Size (WxHxD): 2300 x 1950 x 1100 mm
Chambervolume: 390 Liter
Chamber-Size: 730 x 720 x 730 mm
The usable chamber dimensions are reduced by the electrode assembly and, if applicable, product carrier systems.
Control: SPS-Steuerung (Vipa, Siemens)
Parameter: Time, Pressure, Power, Process Gas
Generator: 5 kW
Optional: Rotating drum and double door
Additional offerings and services
Do you need a different low-pressure plasma system for your production or surface treatment needs? No problem! As a leading manufacturer of plasma systems, we offer customized solutions to help you develop the right equipment for your needs. You also have the option to rent a production plasma system (e.g., for testing). Please feel free to contact us so we can find the best way to meet your specific requirements.
Plant development
Personalized and tailored
Equipment Rental
Flexible rental periods
Top quality
100% Made in Germany
Full-Service
With delivery & setup
FAQ: Buying a Plasma Production System
How much does a plasma production system cost?
The final cost of our production plasma systems depends on the quantity you require. We will send you a final, non-binding purchase offer within 24 hours once all optional requirements—such as insurance, delivery, commissioning, maintenance, or training—have been clarified.
Delivery and installation?
If you have purchased or ordered one of our plasma systems for your production, along with delivery, you have the option of booking one of our technicians. We will then handle the on-site installation and commissioning. In any case, it is important that the necessary connections are already in place and that any necessary assistants or lifting equipment are available to ensure a successful installation.
Delivery times and rental options?
Our delivery time is approximately 15–18 weeks, unless otherwise specified in the quote. The binding delivery date will be stated in the order confirmation. If you would like to rent a system to bridge this gap, this is possible at any time, provided that a suitable plasma rental system is available in our rental fleet. Please feel free to contact us briefly to discuss this.
